Waterjetting machines

Waterjetting Applications:

The applications of STC waterjetting machines are practically endless.

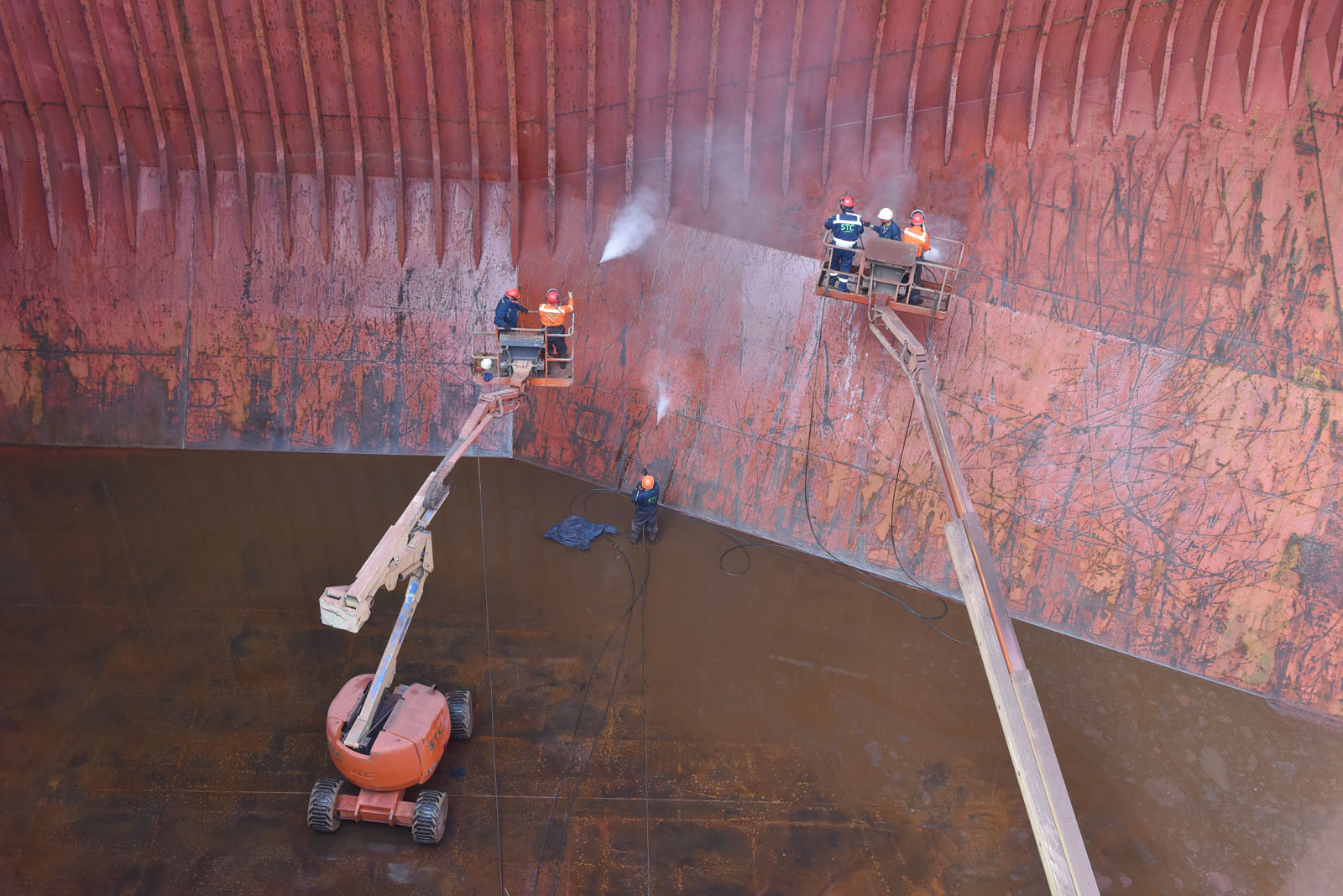

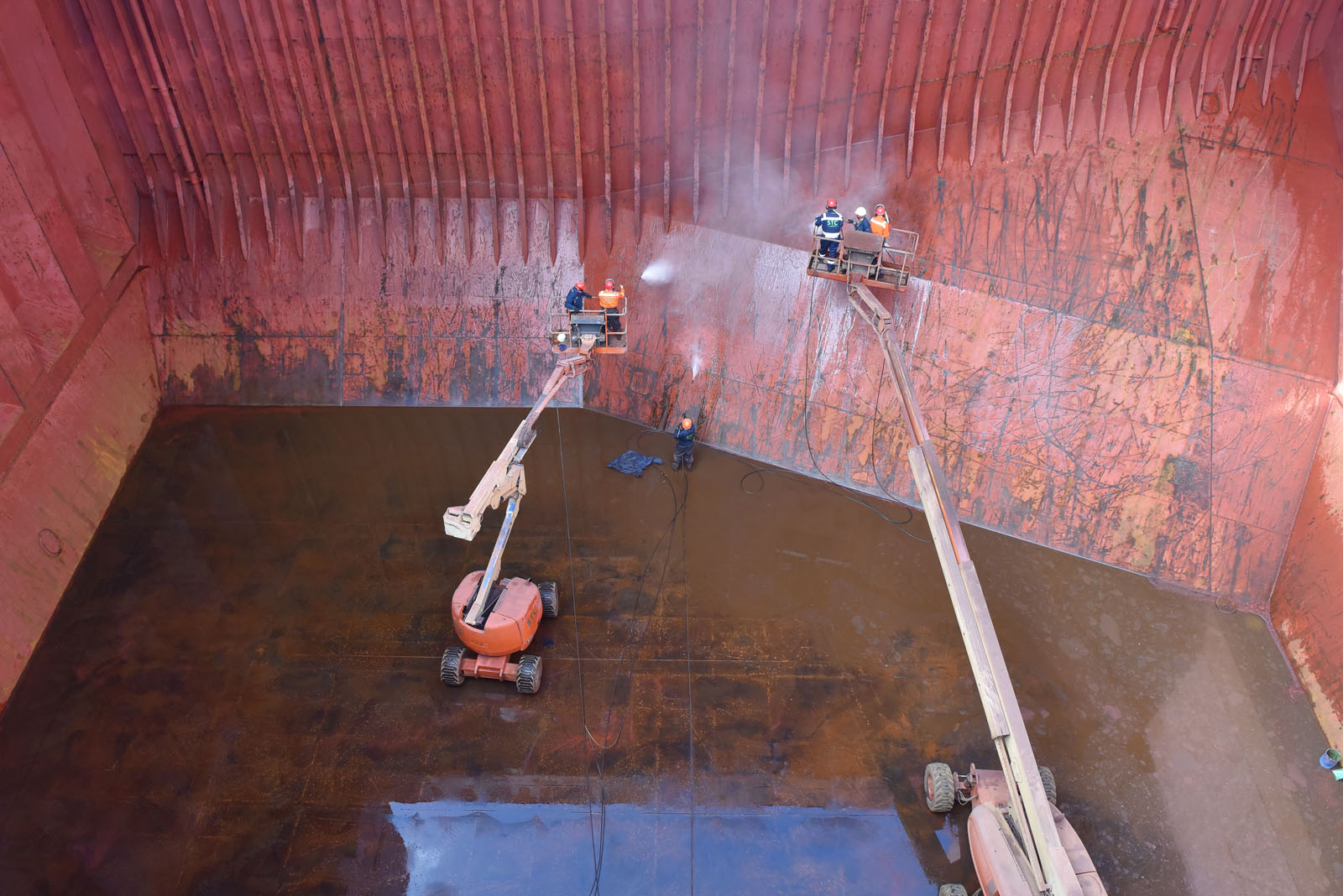

The main concept is cleaning and surface preparation for further process (coating, restoration etc).

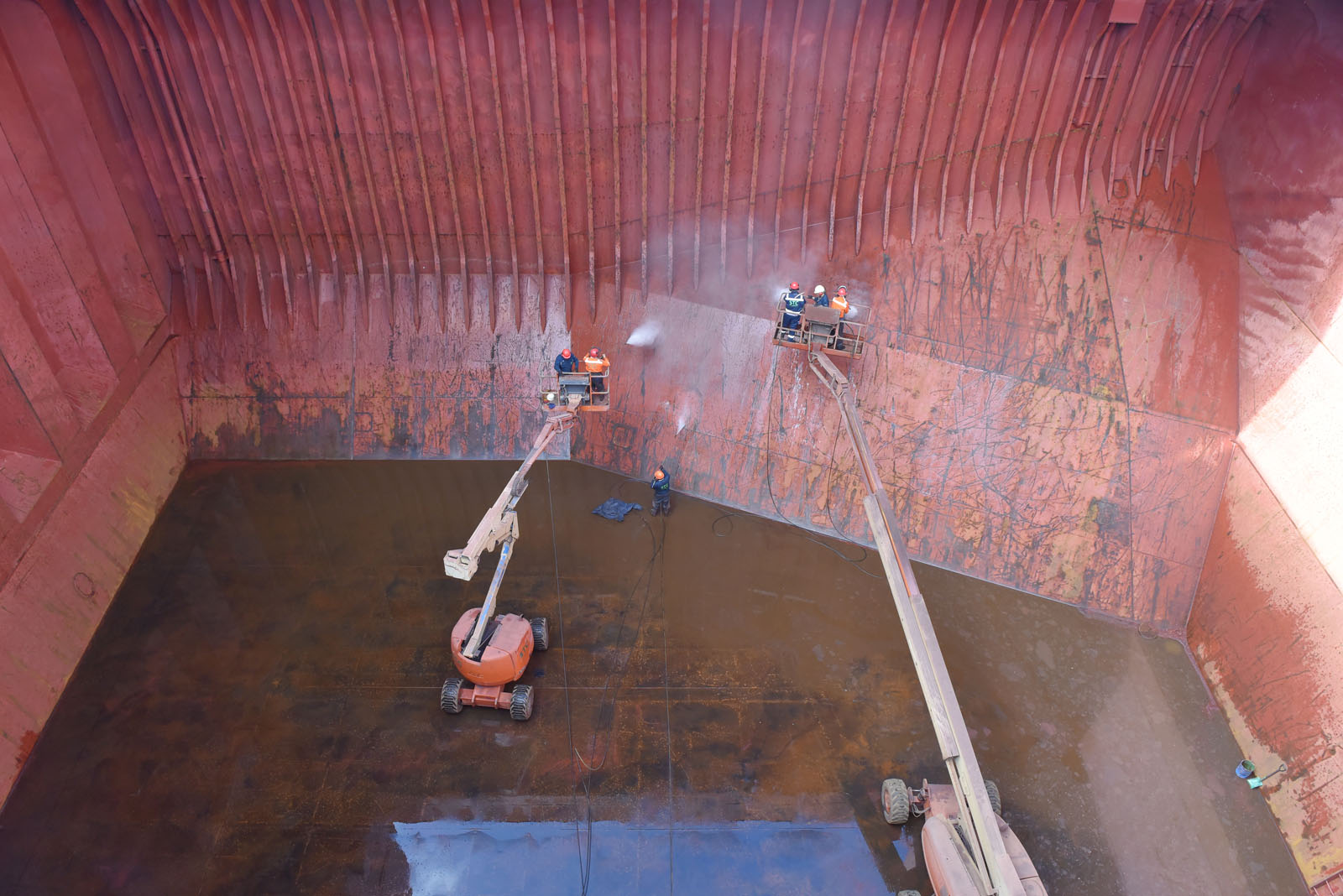

Water jetting can be applied in every area of productive activity such as Shipping and Constructions.
Water jetting is by far the most environmental friendly method.
No need for compressed air (no investment for air compressors, no energy waste).
Water is much easier to be found, cheaper and much easier to be administrated.

Removal of Foreign Elements

The use of hot water has the advantage of removing oil and grease from the surfaces. The pressure of water jetting units can remove dirt, coatings and difficult stains from a surface. It’s fast, efficient, safe and eco-friendly.
It is ideal for cleaning food processing industries, medicinal plants and other industries that require cleaning without chemicals.
The kind of job that can be performed by a water jetting machine depends on its working pressure and the flow rate it delivers.

Water Sand Blasting

All STC high pressure water jetting machines can be equipped with the sand blasting kit. The sand can be of various kinds, according to the job that can be performed. This combination of high pressure water reinforced with sand boosts the effectiveness of the impact and productivity by at least 50% leading to excellent result. Rotating nozzle

Rotating nozzle

uses centrifugal force to produce a strong impact and a spray pattern. The nozzle rotates a powerful, zero degree spray pattern in a circular motion to break down tough dirt and grime. By spinning the discharge water, the spray adds additional scrubbing ability to the cleaning process.
This image for Image Layouts addon

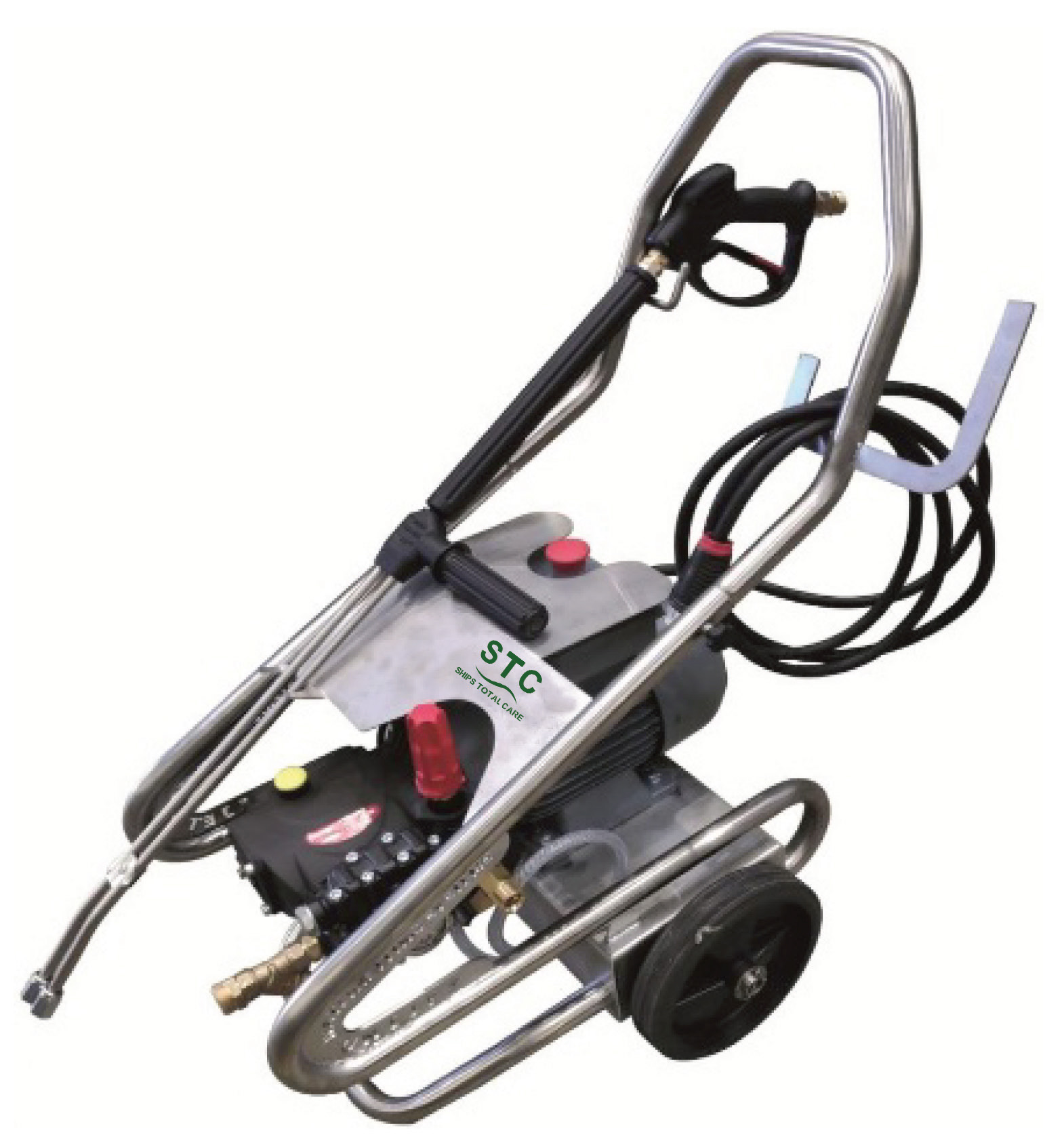

Single Phase Water Blasting STC E 160-9 JEΤ

Technical Specifications
Model: STC –E 160-9 JET
Max. operating pressure: 160 bar
Voltage: 230 V
Frequency: 50 Hz
Max. water flow rate: 9 lpm
Motor output power: 2,2 kW/ 3 HP
Plunger material: Ceramic
Pump head material: Hardened brass
Motor speed: 2.800rpm
Crankshaft speed: 2.800 rpm
This image for Image Layouts addon

Single Phase Water Blasting STC E -180 -9 JEΤ

Technical Specifications
Model: STC E-180-9 JET
Max. operating pressure: 180 bar
Voltage: 230 V
Frequency: 50 Hz
Max. water flow rate: 9 lpm
Motor output power: 3 kW/ 4 HP
Plunger material: Ceramic
Pump head material: Hardened brass
Motor speed: 2.800rpm
Crankshaft speed: 2.800 rpm
This image for Image Layouts addon

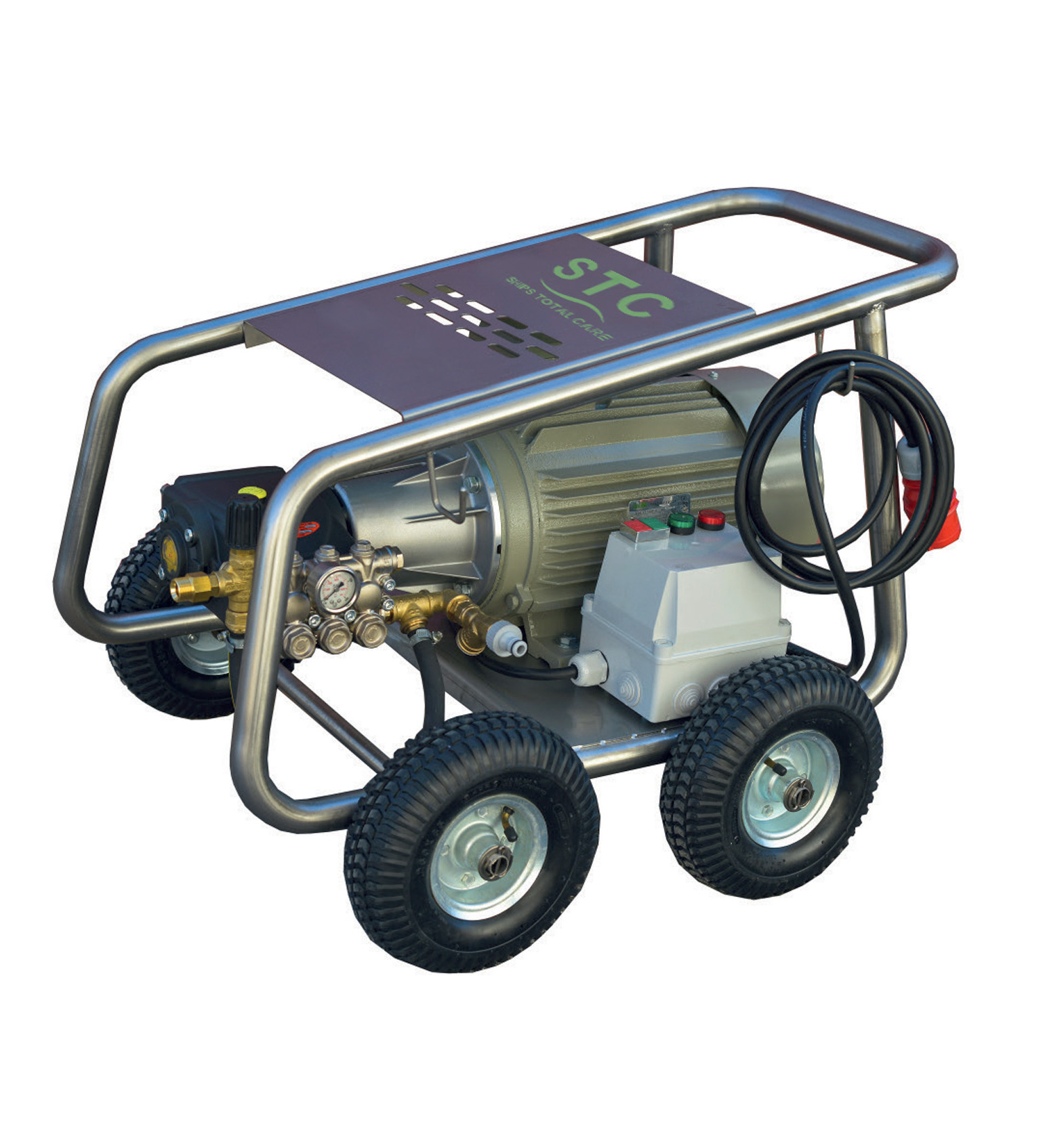

Waterjetting System STC E-250-18 JEΤ

Technical Specifications
Model: STC E- 250-18 JET
Max. operating pressure: 250 bar
Voltage/ Frequency: 380-400 V
Max. water flow rate: 15 lpm
Voltage/ Frequency: 440 V
Max. water flow rate: 18 lpm
Motor output power: 7.5KW/10 HP
Plunger material: Ceramic
Pump head material: Hardened brass
Motor speed: 1450 rpm
Crankshaft speed: 1450 rpm
Weight: 94 kg
Dimensions: 86x66x73 cm
This image for Image Layouts addon

Waterjetting System STC E-350-20 JET

Technical Specifications
Model: STC E-350-20 JET
Max. operating pressure: 350 bar
Voltage/ Frequency: 380-400 V
Max. water flow rate: 17 lpm
Voltage/ Frequency: 440 V
Max. water flow rate: 20 lpm
Motor output power: 11 kW/15 HP
Plunger material: Ceramic
Pump head material: Hardened brass
Motor speed: 1450 rpm
Crankshaft speed: 1450 rpm
Weight: 150 kg
Dimensions: 100x75x83 cm
This image for Image Layouts addon

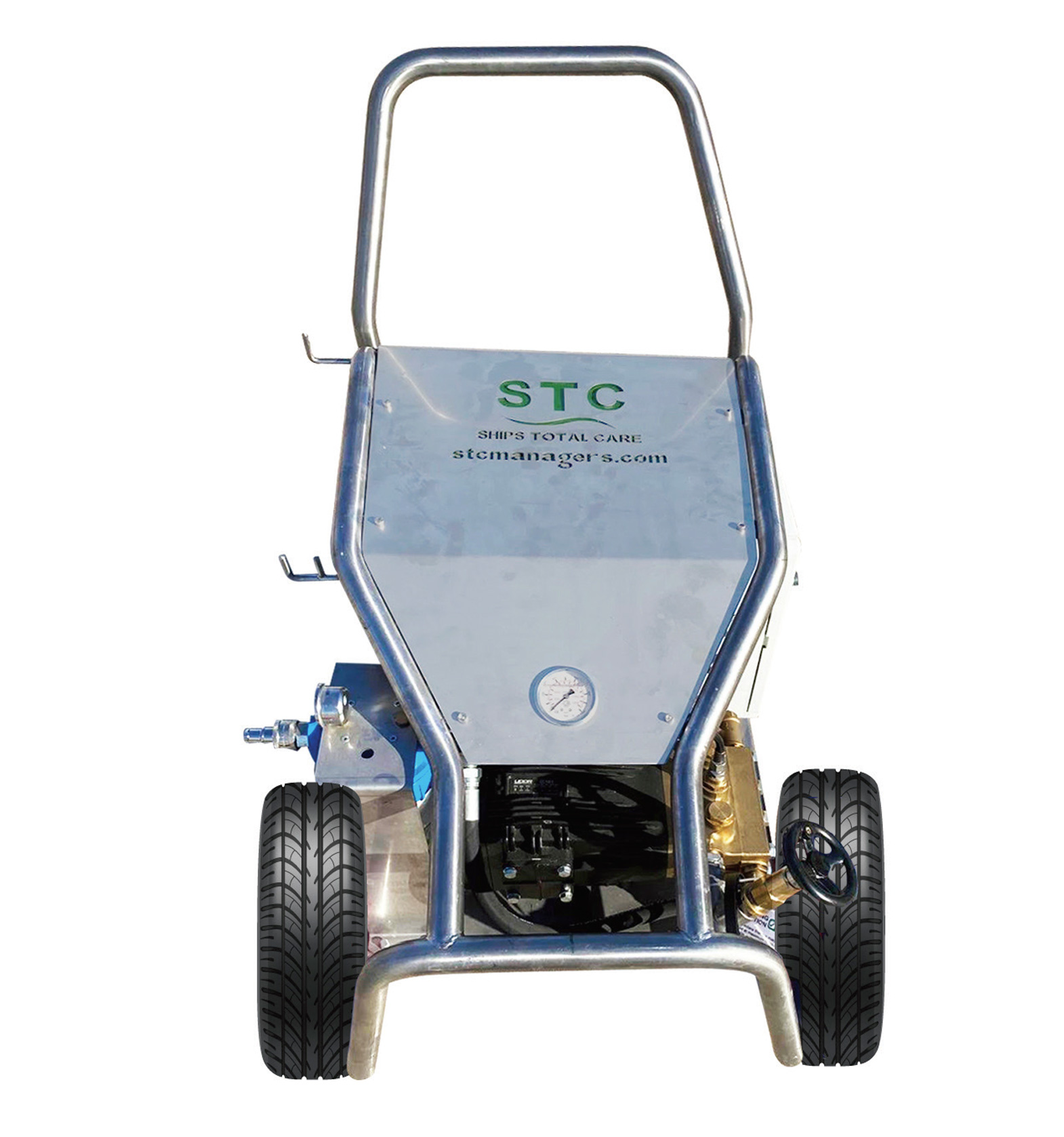

Waterjetting System STC E-500-18HP JET

Technical Specifications
Model: STC E -500 -18 HP JET
Max. operating pressure: 500 bar
Voltage/ Frequency: 380-400 V/50 Hz
Max. water flow rate: 15 lpm
Voltage/ Frequency: 440 V/60 Hz
Max. water flow rate: 18 lpm
Motor output power: 15 kW/20 HP
Plunger material: Ceramic
Pump head material: Hardened brass
Motor speed: 1450 rpm
Crankshaft speed: 1450 rpm
Weight: 150 kg
Dimensions: 100x75x83 cm
This image for Image Layouts addon

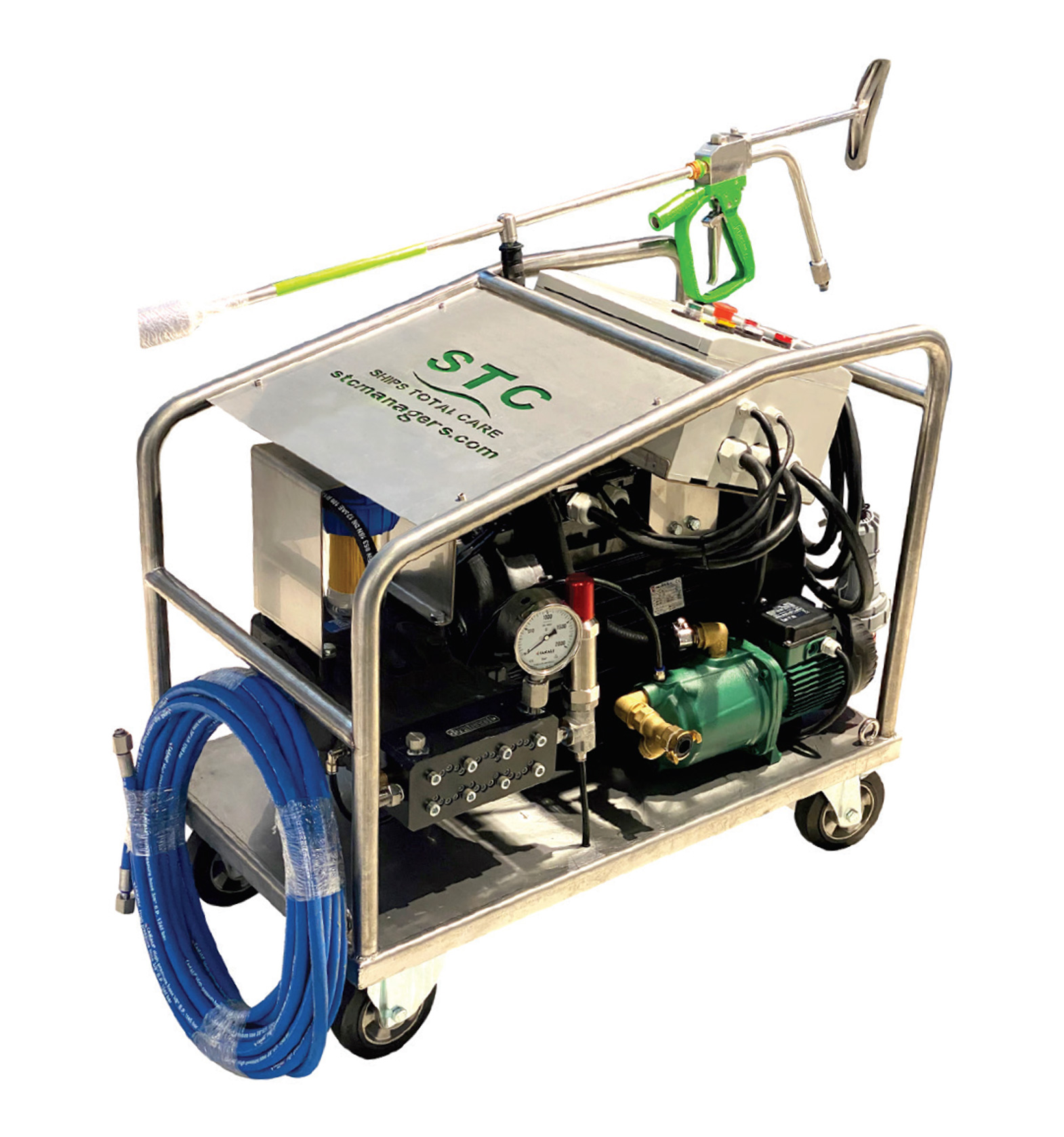

Waterjetting System STC E-1000-18 UHP JET

Technical Specifications
Model: STC E-1000-18 UHPJE
Max. operating pressure: 1000 bar
Voltage/ Frequency: 380-400V/50 Hz
Max. water flow rate: 15 lpm
Voltage/ Frequency: 440V/60 Hz
Max. water flow rate: 18 lpm
Motor output power: 30 kW/40 HP
Plunger material: Solid ceramic
Pump head material: Stainless steel
Motor speed: 1450 rpm
Crankshaft speed: 1450 rpm
Weight: 335kg
Dimensions: 115x80x90 cm
